Model H: Modular Big Bag Unloader

The AZO Model H Standard Modular Big Bag Unloader with Storage is configured for facilities that handle free-flowing ingredients.

Made of painted steel with a galvanized I-beam and electric chain hoist, the Model H Bulk Material Handling System allows for bags to be hung by a single operator as well as easy bag adjustments to facilitate flow and complete emptying. It has a rated capacity of up to two tons.

The Model H Big Bag Unloader features a feeding hopper with 12 cubic feet of storage space. The connection system helps control dust and contamination.

Our German-engineered modular Bulk Bag Handling Systems are flexible and let your operation quickly react to changing production conditions with minimal or no additional costs.

Check out our additional Bulk Bag Unloader models below.

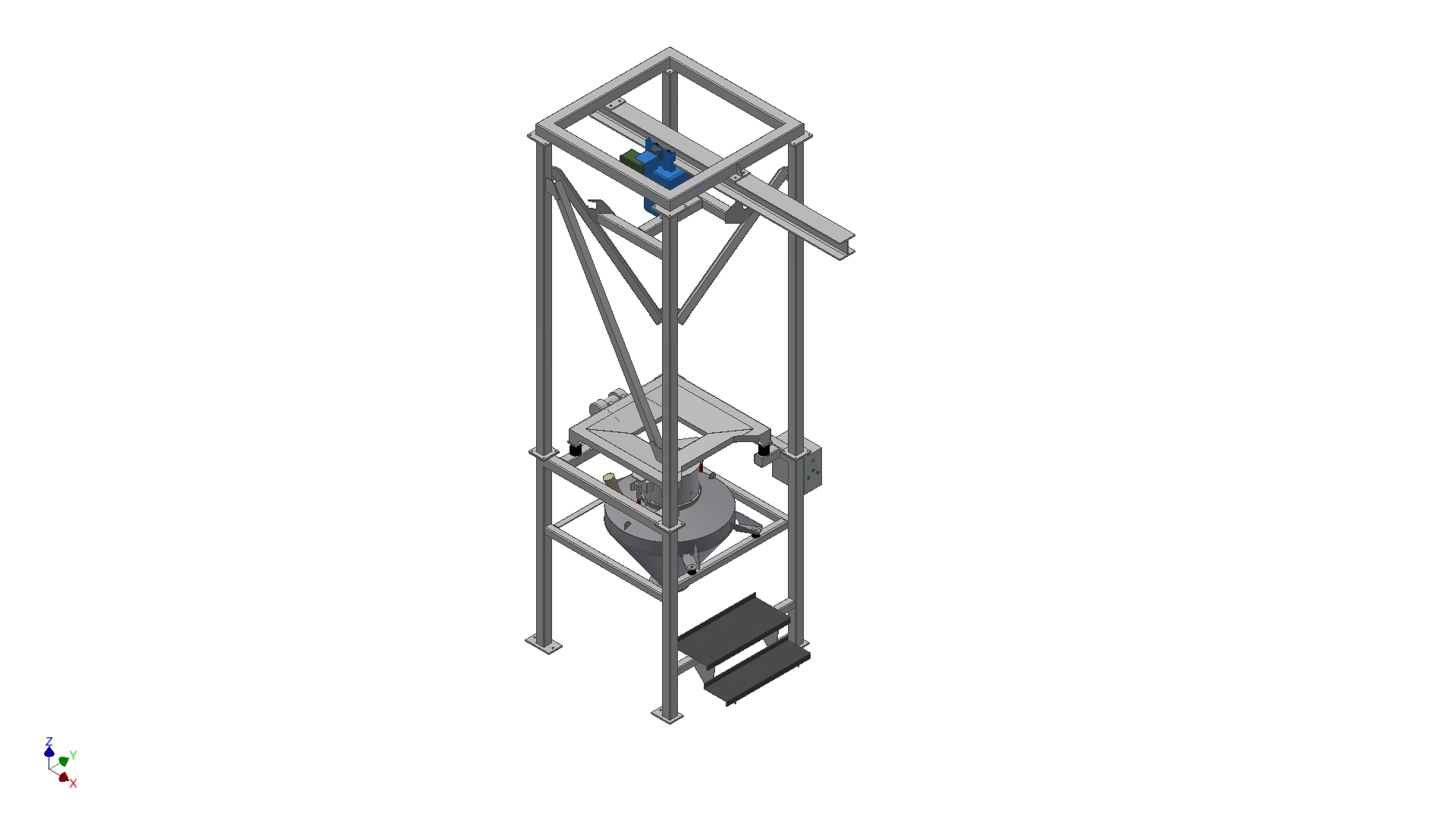

Model H Specifications

  • Size: 5.25’ x 5.25‘ x 17.62’
  • Rated capacity: 2 tons
  • Painted steel frame
  • Painted steel bag lifting beam
  • Galvanized I-beam
  • Electric chain hoist
  • Lower frame with one operator step
Variant_H

Safety Support Platform

  • Electrically operated vibrator
  • Painted steel
SP2_support plattform_1257990-1

Dust-Control Connection System

  • Accommodates 14’ (350 mm) bag outlet
  • Manually operated, gas spring-assisted
  • 304 stainless steel product contact
  • Adaptable for other bag outlets
BBA_1246887-1

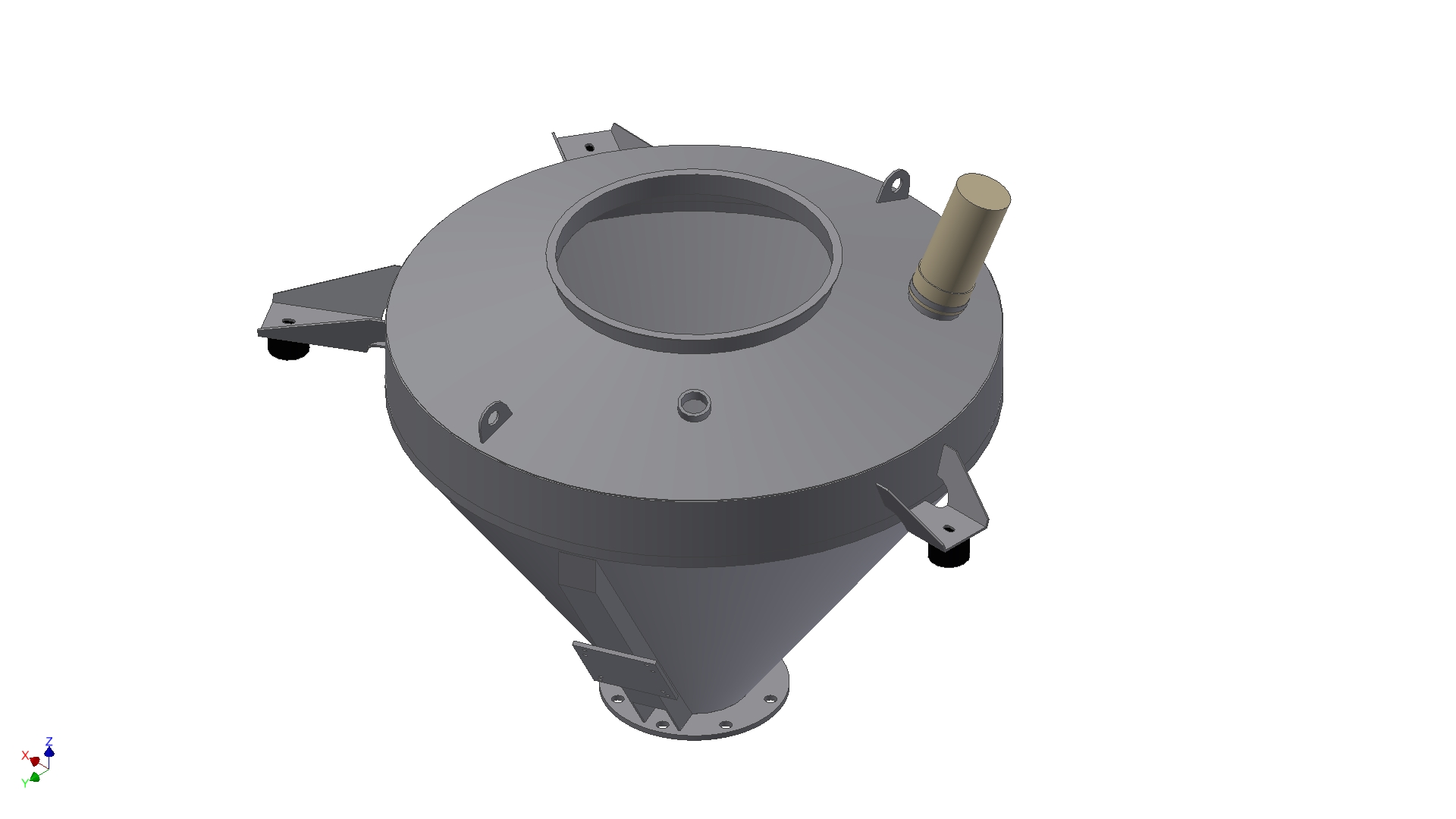

Temporary Storage Hopper

  • Usable volume: 12 feet³
  • Diameter: 43.3’ (1100 mm)
  • 304 stainless steel hopper (AZO finish A22)
  • DIN 200 for rotary valve
  • Electrically operated vibrator
  • Level indicator
H3_hopper D1100_1290215
